Constructing a biodigester in a waterlogged area is often seen as impossible. Many homeowners are told they cannot build a septic tank, cannot construct a traditional manhole, and have no gutter system to channel wastewater away from their property. Under such conditions, waste management becomes a serious challenge.
However, with the right experience, planning, and construction approach, biodigesters can work effectively even in areas with a high water table.
This article shares insights from a real project carried out in a waterlogged location and explains how and why the system was successfully installed.
Understanding the Challenge of Waterlogged Sites
This particular project began with a routine site inspection. During the inspection, it became clear that conventional waste systems were not an option. The soil was waterlogged, a soakaway would immediately fill with water, and there was no gutter or external drainage to carry wastewater away.
In many cases, these limitations would stop the project entirely. But waterlogged areas are exactly where experience becomes critical. Biodigesters are flexible systems, and when specific conditions are met, they can be adapted to work reliably even in difficult environments.
Key Conditions for Biodigesters in Waterlogged Areas
One major advantage on this site was that the homeowner had already raised the building’s foundation. This meant the toilet pipes were positioned higher above ground level, which gave us valuable flexibility in the design and construction process.
When people ask, “Can a biodigester be constructed in a waterlogged area?” the answer is usually yes—but with conditions. The most important factors to assess are
- The height of the water table
- The height of the building’s footing
- The height and positioning of the inlet pipes relative to the biodigester
If the inlet can be positioned correctly, and there is enough internal space for the biodigester bed, filtration materials, and a functional outlet, then the project is already halfway solved.
Preventing Wastewater from Re-entering the Digester
In waterlogged environments, the biggest challenge is not the biodigester itself—it is preventing treated wastewater from flowing back into the system. Without a reliable outlet, water buildup will compromise performance and eventually lead to failure.
For this project, the most effective solution was a French drain, also known as a drain-fill system. This method allows treated wastewater to disperse gradually into filled ground without backing up into the biodigester.
To achieve this, the base of the outlet pipes was perforated, and a small soak pit was constructed. Before installation, the homeowner was advised to carry out proper land filling using sand and compacted material. This created a stable, elevated surface that supported smooth wastewater dispersion.

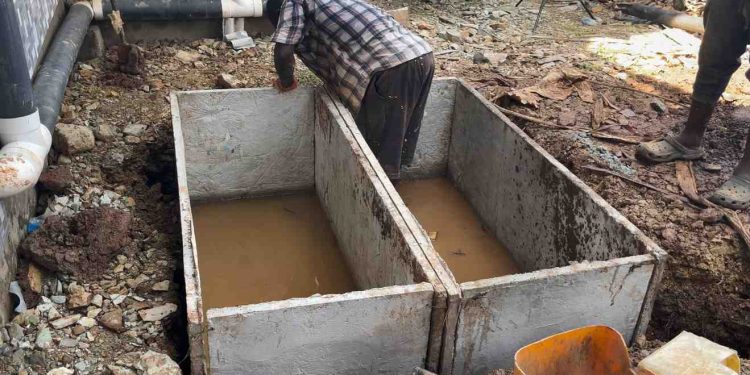

Why the Digester Was Kept Shallow

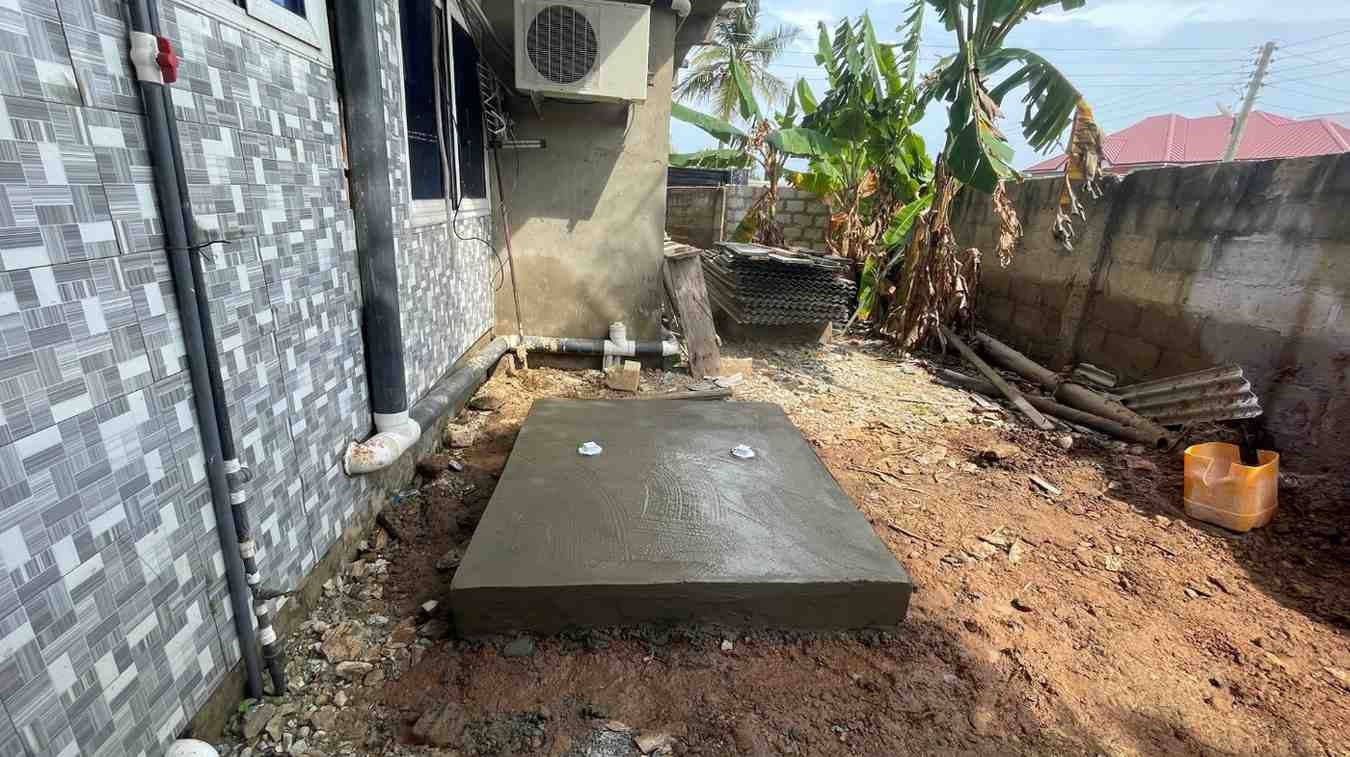

Unlike conventional biodigester installations, we did not dig deep into the ground. Because the toilet pipes were already raised, the digester was constructed close to the surface.
This approach is critical in areas with high groundwater levels. By keeping the digester shallow and ensuring both the inlet and outlet remained above the water table, groundwater intrusion was completely avoided.
The treated wastewater flows from the digester into the drain-fill system, where it disperses slowly without causing flooding, pressure buildup, or backflow. This method works particularly well when there is no access to a gutter system and a traditional soakaway would fail.
Why French Drains Work in Waterlogged Areas
French drains are effective because they provide controlled dispersion of wastewater. Perforated pipes allow water to escape gradually, while the filled and compacted ground absorbs and manages the flow naturally.
When landfilling is done properly and inlet heights are correctly set, every toilet flush sends waste into the digester, allows rapid separation, and ensures wastewater exits smoothly into the drain system or soak pit.
Where gutters or external drainage channels are available, they can be used as an alternative outlet. However, in situations where no such options exist, a French drain remains the safest and most reliable solution.
Final Advice for Builders and Homeowners
If you are considering constructing a biodigester in a waterlogged area, one thing must be clear:
This is not a beginner’s job.
Successful installation requires a solid understanding of water tables, pipe elevations, filtration space, and wastewater flow. Ignoring any of these elements can lead to system failure, costly repairs, and long-term inconvenience.
The safest approach is to ensure that:
- The building footing is raised
- Toilet pipes are well above ground level
- The biodigester is kept shallow
- And wastewater has a reliable exit route
When these conditions are met, biodigesters can function efficiently and reliably—even in waterlogged environments.
