As more homeowners and developers search for eco-friendly, cost-effective, and low-maintenance waste management solutions, biodigesters have become the preferred alternative to traditional septic tanks. When constructed properly, a biodigester offers odor-free operation, rapid waste breakdown, environmental protection, and long-term peace of mind.
In this guide, we walk you through how to construct a biodigester using block work, focusing not just on how to build it, but how to build it the right way so it lasts for years and performs efficiently underground .
Whether you are a homeowner, mason, plumber, or contractor, this article explains each stage in simple terms while highlighting the critical mistakes to avoid.
Understanding Biodigester Construction Options
There are several types of biodigesters available today. Some homeowners prefer precast biodigester systems, while others use brickwork designs. However, this guide focuses on constructing a strong and durable biodigester using blockwork, which remains one of the most reliable methods when done correctly.
The recommended block for construction is the 5-inch quarry dust block due to its strength and durability. However, 4-inch blocks can also work effectively if that is what is available in your area. What matters most is proper alignment, sealing, and foundation preparation.
Step 1: Proper Site Selection and Preparation
Before laying a single block, site selection is the most critical step in biodigester construction. The location determines how well the system functions and how long it lasts underground .
You must:
- Measure and mark the exact dimensions of the biodigester.
- Decide whether the unit is for a standard family, medium household, large household, or commercial use.
- Consider the number of users and size of the property.
Once marked, excavate the ground to the correct depth. Never guess measurements. Precision at this stage prevents costly corrections later.
Step 2: Constructing a Strong Concrete Base
The concrete base is the foundation of the entire biodigester system. A weak base leads to cracks, misalignment, and failure over time.
If the soil is:
- Clay, soft, or loose, add chippings before pouring concrete.
- This creates firmness and allows accurate leveling.
When mixing concrete:
- Use the correct water ratio to ensure strength.
- Screed the surface carefully.
- Shape a gentle slope toward the leachate outlet pipe.
This slope is essential. Without it, water will stagnate inside the digester, affecting separation and causing odors.
Step 3: Managing High Water Tables and Groundwater
In areas with high water tables or waterlogged soil, extra protection is required. Lay a thick black polythene sheet on the concrete base before continuing construction .
This barrier:
- Prevents groundwater from entering the digester.
- Protects the internal filter bed.
- Ensures uninterrupted separation and decomposition.
A key rule in biodigester construction is never to hit the water table. The digester depth must always be matched carefully to site conditions.
Step 4: Laying the Block Work Correctly
Once the base is set, begin laying the blocks using:
- A rope for alignment
- A level for accuracy
- A trowel for clean joints
Straight lines and even layers are not just about appearance. They ensure:
- Structural integrity
- Proper sealing
- Long-term underground durability .
If you are not experienced in masonry, it is strongly advised to hire a qualified mason. Biodigesters must be airtight and perfectly aligned to function properly.
Step 5: Installing the Leachate Outlet Pipe
During the first layer of block work, space must be left for the leachate outlet pipe. This pipe removes filtered water from the digester and directs it to a soakaway or drainage system.
Important guidelines include:
- Use a 4-inch pipe.
- Install it during construction, not afterward.
- Ensure a continuous downward slope for gravity flow.
Never chisel finished walls to add the pipe. This weakens the structure and causes leaks.
Step 6: Designing the Soakaway or Drainage System
The leachate pipe may discharge into:
- A traditional soakaway
- A block-built drainage pit
- A legal external drainage system
The distance between the digester bed and soakaway should be at least four feet, with more space preferred for safety and longevity.
For drain flow systems:
- Perforate the pipe base.
- Lay chippings beneath.
- Cap the pipe end with a vent cap to prevent debris entry.
Modern best practice favors traditional soakaways because they:
- Protect the environment
- Prevent odor issues
- Avoid neighbor complaints from surface discharge
Step 7: Coordinating Inlet Pipes from the House
The toilet inlet pipe determines how many block layers the biodigester needs. For example:
- Higher pipe exit → more block layers
- Lower pipe exit → fewer block layers
The goal is to allow smooth gravity flow without resistance .
A common mistake is building the digester before coordinating with the plumber. To avoid this:
- Leave the inlet point uncut.
- Allow the plumber to chisel and install the pipe at the correct angle.
This prevents backflow, blockages, and costly redesigns.
Step 8: Preparing the Digester Bed and Internal Slope
Inside the chamber, screed the base again to ensure:
- A gentle slope toward the outlet
- No stagnant water remains inside
Biodigesters rely on rapid separation:
- Wastewater exits immediately
- Solid waste remains for decomposition
This separation is why biodigesters:
- Do not smell
- Do not attract maggots
- Perform better than septic tanks.
Step 9: Installing the Biodigester Filter Bed
The filter bed is the heart of the biodigester system. Modern systems use concrete porous slabs instead of outdated wire mesh designs.
These slabs:
- Sit on internal block ledges
- Allow water to drip through
- Hold solid waste above for microbial action
They are:
- Durable
- Chemical-resistant
- Unaffected by detergents or bleach
On top of the slabs, add fiber materials such as coconut husk. This biodegradable medium supports filtration and enhances decomposition.

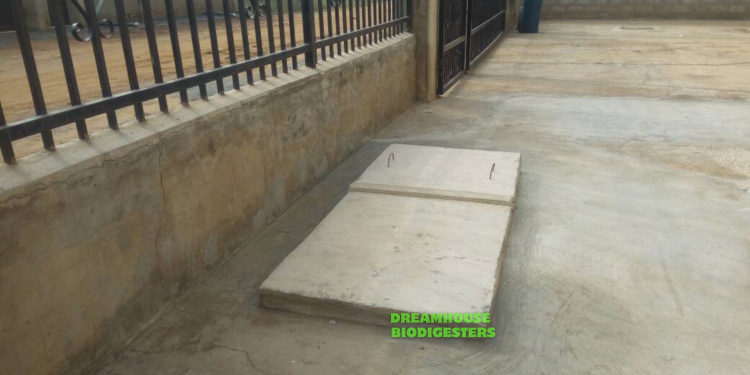

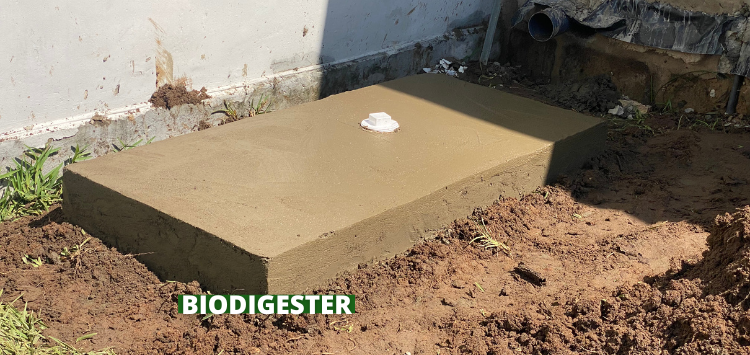

Step 10: Sealing the Top Slab and Final Finishing
Once the bed is complete:
- Place the top slab carefully
- Seal all edges tightly with mortar
- Ensure the system is airtight
Biodigesters function without oxygen, so no vent pipe is required on the unit itself. Any necessary venting should be handled through the building’s plumbing system.
Finally, install an inspection chamber along the soakaway line and the biodigester itself. This allows easy monitoring and maintenance without disturbing the system.
Long-Term Benefits of a Properly Built Biodigester
When constructed correctly, a block-built biodigester offers:
- Long-term durability
- Odor-free operation
- Minimal maintenance
- No need for sludge trucks
- Environmentally responsible waste treatment
Homeowners enjoy peace of mind, knowing their waste system is efficient, clean, and built to last.
Biodigesters are not just toilets—they are engineered waste treatment systems. Every stage, from site selection to final sealing, matters. When built properly using block work, correct slopes, proper filtration, and sealed chambers, a biodigester becomes one of the most reliable and sustainable waste solutions available today.
If you are planning to build or install a biodigester, following these principles ensures performance, safety, and long-term value for your home or project.
